• 124.5 cm (49") QD-OLED OLED
  • DQHD 5120 x 1440 pixels 32:9
  • 240 Hz 0.03 ms 1000 cd/m² 1500000:1
  • Flicker-free technology
  • G 65 kWh 130 W

Display
Display diagonal 124.5 cm (49")
Display resolution 5120 x 1440 pixels
HD type DQHD
Native aspect ratio 32:9
Display technology QD-OLED
Panel type OLED
LED backlight Yes
Backlight type QD
Touchscreen No
Display brightness (typical) 1000 cd/m²
Response time 0.03 ms
Anti-glare screen Yes
Screen shape Curved
Screen curvature rating 1800R
Contrast ratio (typical) 1500000:1
Contrast ratio (dynamic) 80000000:1
Maximum refresh rate 240 Hz
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 1.07 billion colours
Pixel pitch 0.233 x 0.233 mm
Pixel density 108.5 ppi
Horizontal scan range 30 - 390 kHz
Vertical scan range 48 - 240 Hz
Viewable size, horizontal 119.7 cm
Viewable size, vertical 33.9 cm
Display diagonal (metric) 124 cm
High Dynamic Range (HDR) supported Yes
High Dynamic Range (HDR) technology DisplayHDR 400 True Black, High Dynamic Range 10 (HDR10)
DDC/CI Yes
Haze rate 25%
Surface hardness 2H
sRGB coverage (typical) 151.6%
NTSC coverage (typical) 125.9%
Adobe RGB coverage 123.7%
BT.2020 coverage 83.8%
DCI-P3 coverage 115%
Performance
Fast charging Yes
Fast charging technology Power Delivery 3.0
VESA Adaptive Sync support Yes
Flicker-free technology Yes
Game mode Yes
Multimedia
Number of speakers 2
RMS rated power 16 W
Built-in speaker(s) Yes
Audio decoders DTS
Built-in camera No
Design
Market positioning Gaming
Product colour Black
Frameless design Yes
Front bezel colour Black
Ports & interfaces
Built-in USB hub Yes
USB hub version 3.2 Gen 1 (3.1 Gen 1)
Number of USB Type-C upstream ports quantity 1
USB Type-A downstream ports quantity 4
USB Type-C downstream ports quantity 1
USB Power Delivery (USB PD) Yes
USB Power Delivery up to 90 W
HDMI Yes
HDMI ports quantity 2
HDMI version 2.1
DisplayPorts quantity 1
DisplayPort version 1.4
Headphone out Yes
Headphone outputs 1
Headphone connectivity 3.5 mm
Built-in KVM switch Yes
KVM switch ports quantity 1
HDCP Yes
HDCP version 2.2
AC (power) in Yes
Ergonomics
VESA mounting Yes
Panel mounting interface 100 x 100 mm
Cable lock slot Yes
Cable lock slot type Kensington
Height adjustment Yes
Adjustable height (max) 13 cm
Pivot No
Swivelling Yes
Swivel angle range -20 - 20°
Tilt adjustment Yes
Tilt angle range -3 - 13°
Picture-in-Picture Yes
On Screen Display (OSD) Yes
Plug and Play Yes
LED indicators Operation, Stand-by
Power
Energy efficiency class (SDR) G
Energy efficiency class (HDR) G
Energy consumption (SDR) per 1000 hours 65 kWh
Energy consumption (HDR) per 1000 hours 75 kWh
Power consumption (typical) 130 W
Power consumption (standby) 0.5 W
Power consumption (max) 330 W
Power consumption (off) 0.3 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 4.5 A
Power supply type Internal
Energy efficiency scale A to G
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -25 - 55 °C
Operating relative humidity (H-H) 10 - 85%
Storage relative humidity (H-H) 5 - 93%
Operating altitude 0 - 5000 m
Non-operating altitude 0 - 12192 m
Weight & dimensions
Width (with stand) 1191.8 mm
Depth (with stand) 388.3 mm
Height (with stand) 561.5 mm
Weight (with stand) 15.8 kg
Width (without stand) 1191.8 mm
Depth (without stand) 160.7 mm
Height (without stand) 373.8 mm
Weight (without stand) 11.2 kg
Packaging data
Package width 1310 mm
Package depth 506 mm
Package height 565 mm
Package weight 25.3 kg
Packaging content
Stand included Yes
Cables included AC
Screws included Yes
Other features
Low input lag Yes
FPS counter Yes
Dial point Yes
Shadow control Yes
Compatible operating systems Windows 8.1/10/11, MacOS
Picture-by-Picture (PbP) Yes
Bezel thickness type Frameless

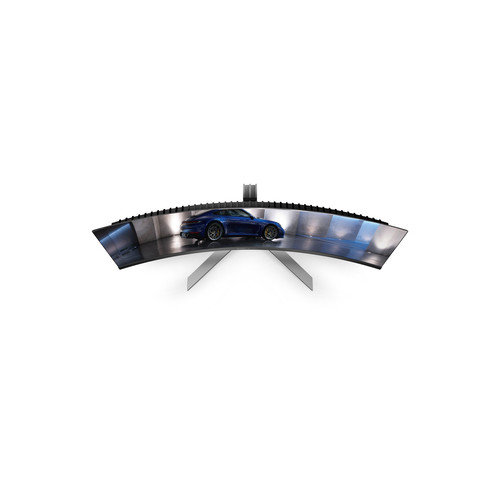

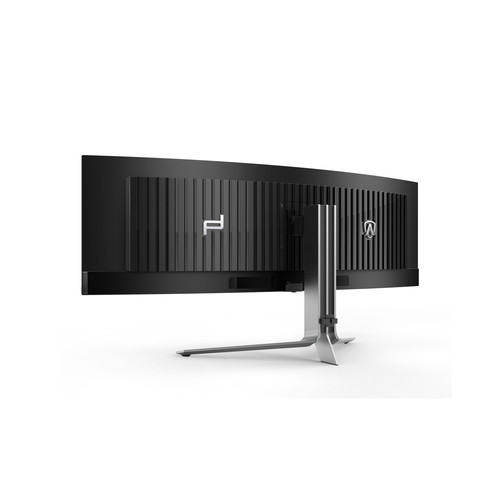

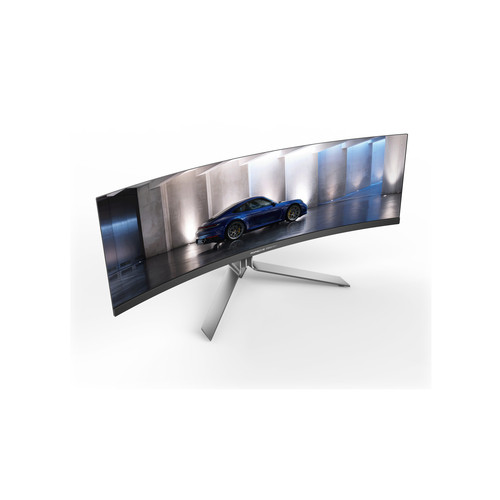

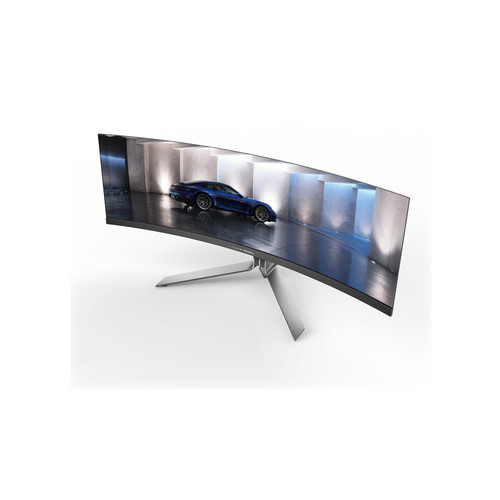

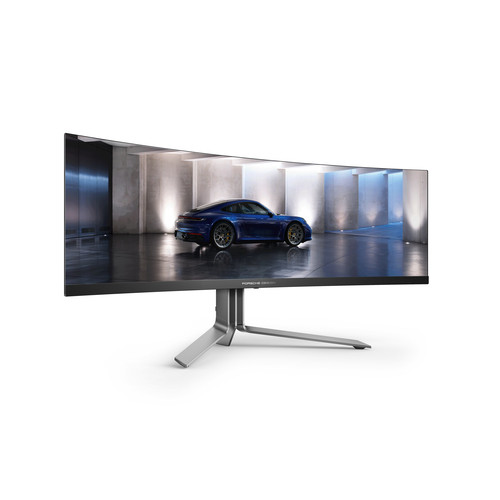

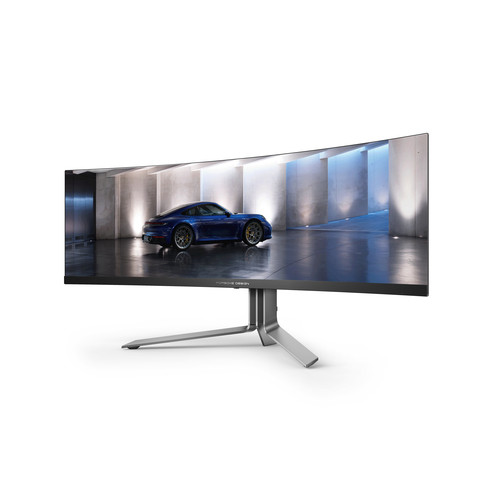

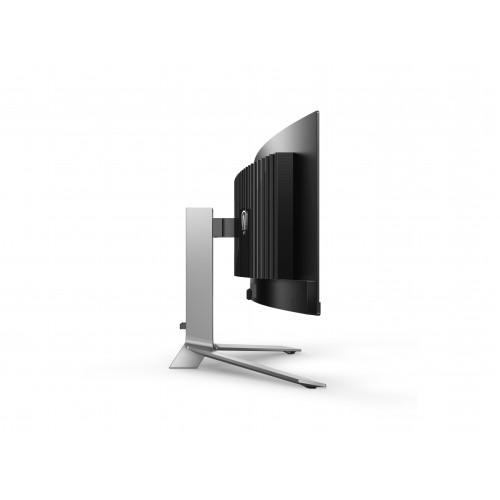

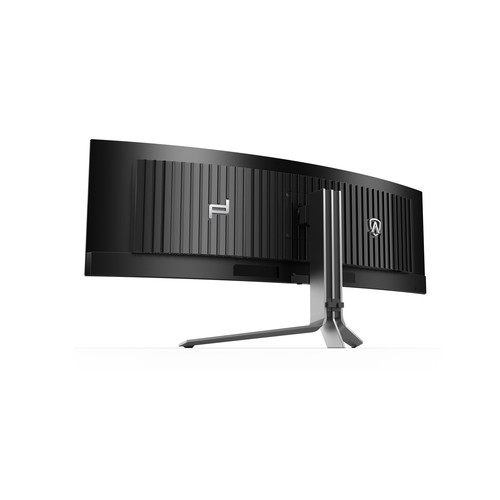

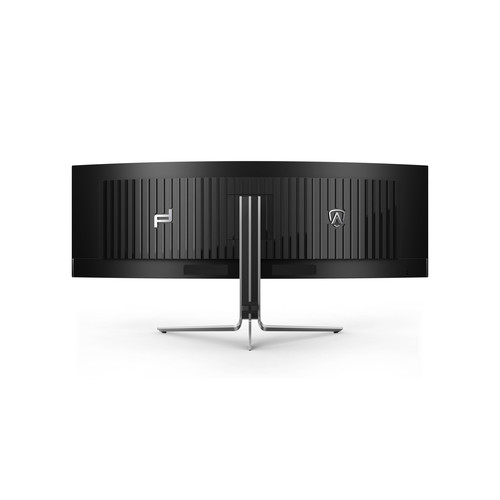

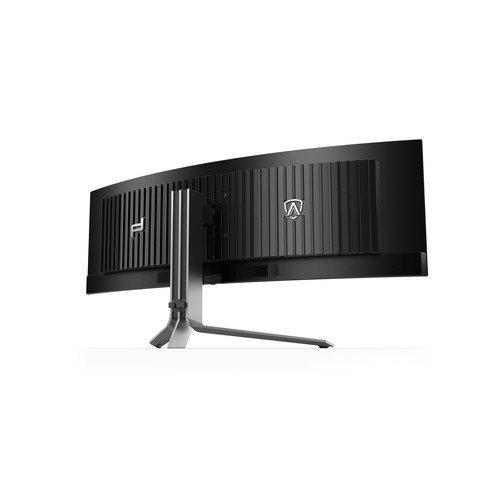

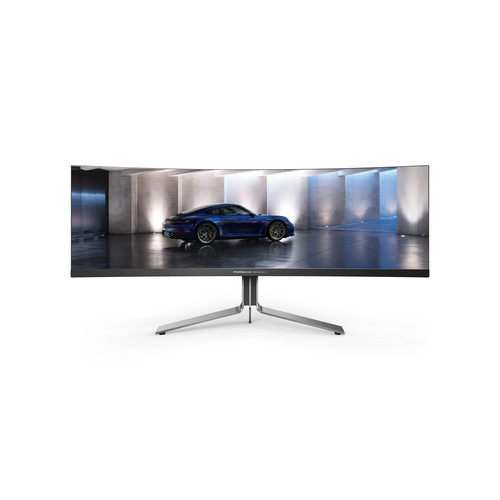

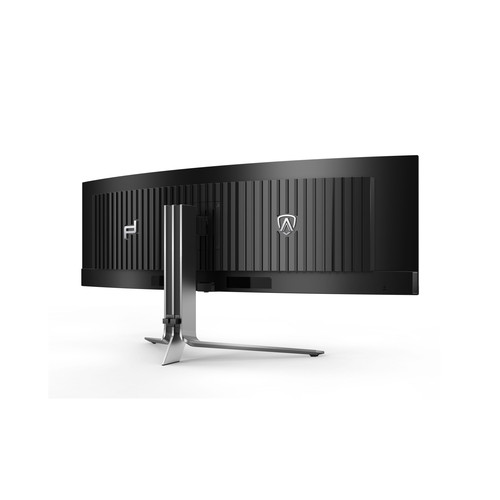

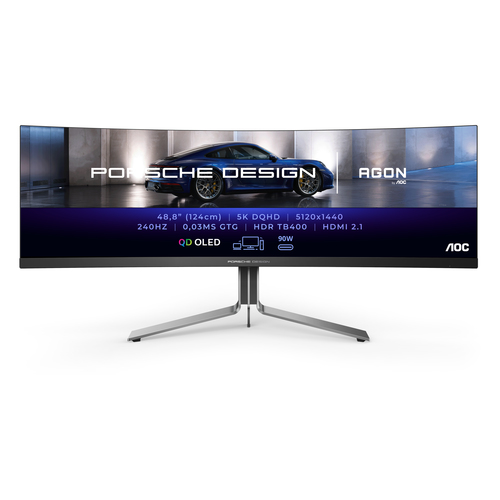

AOC 49” PD49 CURVED 240HZ 0.03MS 3SIDE FRAMELESS

  • Brand: AOC
  • Product Code: PD49
