- Indoor Black
- 190.5 cm (75") 3840 x 2160 pixels LCD 350 cd/m²
- Touchscreen 60 Hz 8 ms
- Ethernet LAN
- Built-in speaker(s) 30 W
- Indoor Black
- 190.5 cm (75") 3840 x 2160 pixels LCD 350 cd/m²
- Touchscreen 60 Hz 8 ms
- Ethernet LAN
- Built-in speaker(s) 30 W

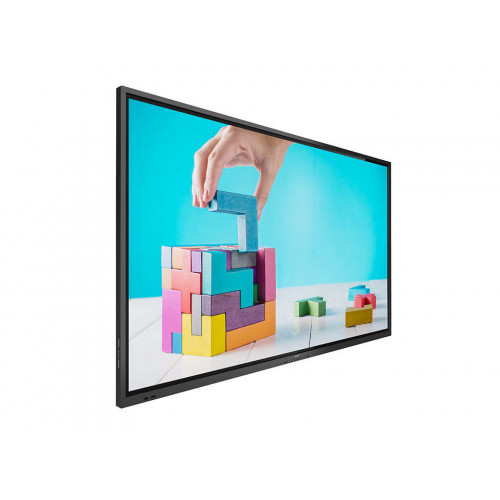

Philips 75BDL3052E/00. Display diagonal: 190,5 cm (75"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD, Touchscreen. Operating system installed: Android 8.0. Product colour: Black
The Philips E-Line touch display maximises engagement and inspires collaboration with up to 20 touchpoints. Powered by Android and featuring a toughened anti-glare glass, it’s made to withstand heavy daily usage in the classroom.
Interactive and collaborative
- Operate, monitor and maintain with CMND & Control
- Multi-touch technology capable of 20 touchpoints
- Advanced IR touch with smaller, shallower bezels
Smart and powerful
- OPS slot allows for PC embedding without cabling
- Whiteboard mode built-in
- Android: Run your own app or choose your favorite app to run
- 0-gap touch frame
- Anti-glare toughened glass 7 MOHS
| Picture / Display | |
|---|---|
| Diagonal screen size | 74.5 inch / 189.3 cm |
| Panel resolution | 3840 x 2160 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Response time (typical) | 8 ms |
| Aspect ratio | 16:9 |
| Viewing Angle (H / V) | 178 / 178 degree |
| Pixel pitch | 0.4296 (H) x 0.4296 (V) mm |
| Display colours | 1.07 B |
| Picture enhancement | 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement |
| Panel technology | ADS |
| Contrast ratio (typical) | 1200:1 |
| Operating system | Android 8.0 |
| OS UI resolution | 1920 x 1080 @ 60 Hz |
| Brightness (after glass) | 380 cd/m² |
| Brightness (before glass) | 410 cd/m² |
| Supported Display Resolution — Computer Formats | |
| 720 x 400 | 70 Hz |
| 832 x 624 | 75 Hz |
| 1440 x 900 | 60 Hz |
| 1600 x 900 | 60 Hz |
| 1680 x 1050 | 60 Hz |
| 1920 x 1080 | 60 Hz |
| 1024 x 768 | 60 Hz |
| 1152 x 870 | 75 Hz |
| 1280 x 1024 | 60 Hz |
| 1280 x 720 | 60 Hz |
| 3840 x 2160 | 30, 60 Hz |
| 640 x 480 | 60, 67, 75 Hz |
| 800 x 600 | 60 Hz |
| Supported Display Resolution — Video Formats | |
| 480i | 60 Hz |
| 480p | 60 Hz |
| 720p | 50, 60 Hz |
| 1080i | 50, 60 Hz |
| 1080p | 50, 60 Hz |
| 2160p | 30, 60 Hz |
| 576i | 50 Hz |
| 576p | 50 Hz |
| Connectivity | |
| Video input | DVI-D (x1), HDMI 2.0 (x3), VGA (Analogue D-Sub) (x1), USB 2.0 (x4), USB-C (up to 65 W) |
| Audio input | 3.5 mm mini jack (x1) |
| Audio output | 3.5 mm Mini Jack (x1) |
| External control | IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack |
| Other connections | OPS, micro SD, USB-B (x3) |
| Convenience | |
| Placement | Landscape (18/7) |
| Screen-saving functions | Pixel Shift, Low Brightness |
| Signal loop through | RS232, IR Loop through |
| Ease of installation | AC Out, Smart Insert |
| Network controllable | RS232, RJ45 |
| Keyboard control | Lockable |
| Remote control signal | Lockable |
| Other convenience | Carrying handles |
| Operating Conditions | |
| Temperature range (operation) | 0 ~ 40 °C |
| Temperature range (storage) | -20 ~ 60 °C |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 hour(s) |
| Humidity range (operation) [RH] | 20–80% (without condensation) |
| Humidity range (storage) [RH] | 5–95% (without condensation) |
| Power | |
| Consumption (Typical) | 155 W |
| Consumption (Max) | 400 W |
| Standby power consumption | <0.5 W |
| Mains power | 100 ~ 240 VAC, 50/60 Hz |
| Power Saving Features | Smart Power |
| Energy Label Class | G |
| Sound | |
| Built-in speakers | 2 x 15 W |
| Accessories | |
| Optional accessories | Interact dongles |
| Included Accessories | Cleaning cloth, HDMI Cable (3 m), IR sensor cable (1.8 m), Philips logo, Quick start guide, Remote control with batteries, RS232 daisy chain cable, Touch Pen (x2), USB A to B cable (3 m), RS232 cable, AC Power Cord, Cable clip (x3), AC switch cover and screw, DVI-D cable, USB cover and screws |
| Miscellaneous | |
| On-Screen Display Languages | Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese |
| Regulatory approvals | CE, FCC, Class A, RoHS, CB, EAC, EMF, ETL |
| Warranty | 5-year warranty |
| Multimedia Applications | |
| USB Playback Video | H.263, H.264, H.265, MPEG1/2, MPEG4, VP9 |
| USB Playback Picture | BMP, JPEG, PNG |
| USB Playback Audio | AAC, MPEG, HEAAC |
| Interactivity | |
| Multi-touch technology | 0-gap Infrared touch |
| Touchpoints | 20 simultaneous touch points |
| Plug and play | HID compliant |
| Protection glass | Anti-Glare, Tempered safety glass 7 MOHS |
| Weight | |
| Product with packaging | 67.60 kg / 149.03 lb |
| Product without stand | 55.77 kg / 122.95 lb |
| Internal Player | |
| CPU | 2 x A53 + 2 x A73 |
| GPU | ARM Mali G51 |
| Memory | 3 GB DDR3 |
| Storage | 16 GB EMMC |
| Dimensions | |
| Smart Insert mount | 100 x 100 mm, 6xM4L6 |
| Set dimensions (W x H x D) | 1715.5 x 1007.6 x 101.5 mm (D_Max) / 79.2 mm (D_Wallmount) |
| Set dimensions (inch) | 67.54 x 39.67 x 3.99 (D_Max) / 3.12 (D_Wallmount) inch |
| Bezel width | 17.8 mm (T/R/L) x 31.7 mm (B) |
| Wall Mount | 600 x 400 mm, M8 |
| Weight | 55.77 kg |
PHILIPS 75" E-LINE LCD 350 cd/m² 4K UHD BLACK TOUCH ANDR 8.0
- Brand: Philips
- Product Code: 75BDL3052E
