- Indoor Interactive flat panel Black
- 2.18 m (86") 3840 x 2160 pixels LED 400 cd/m²
- Touchscreen 8 ms
- Ethernet LAN Wi-Fi
- Built-in speaker(s) 40 W

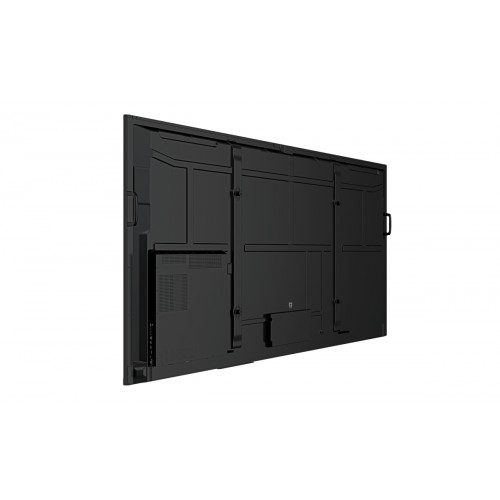

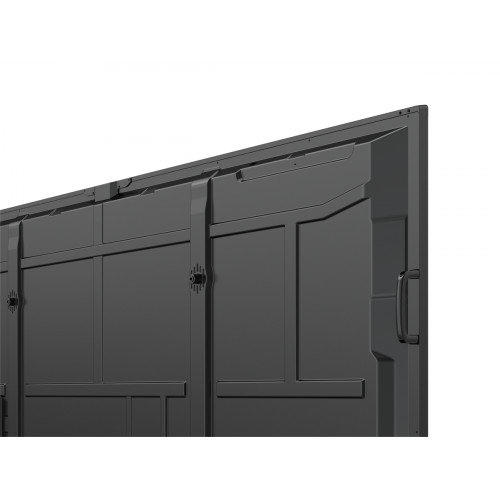

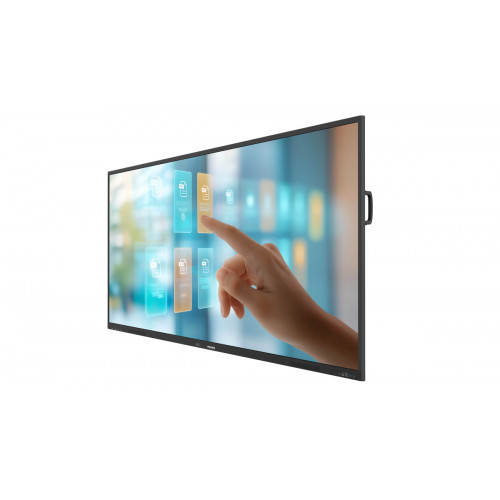

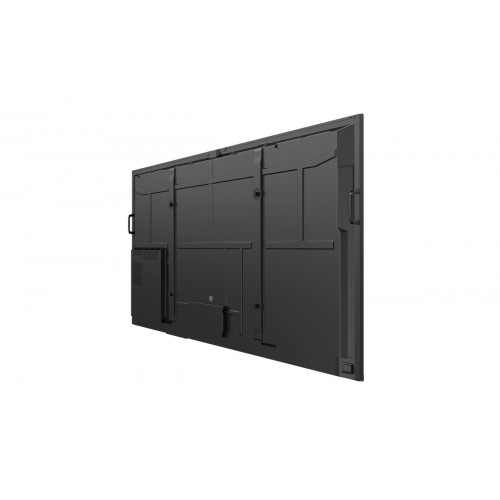

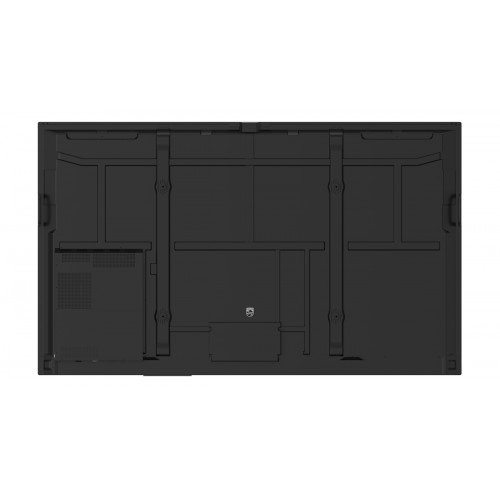

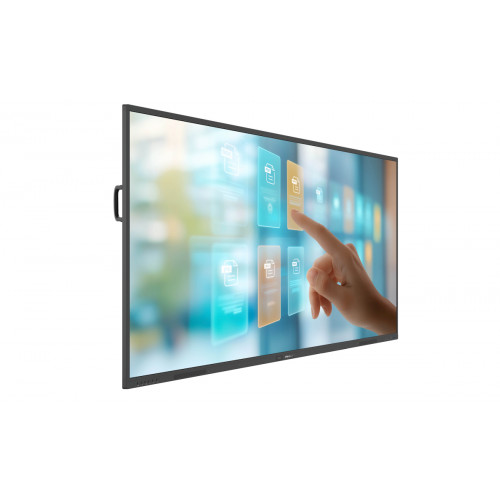

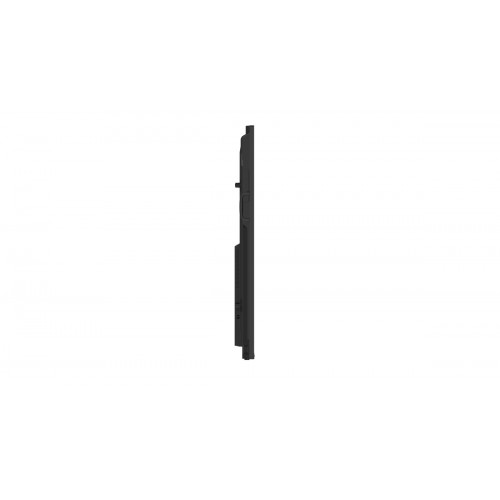

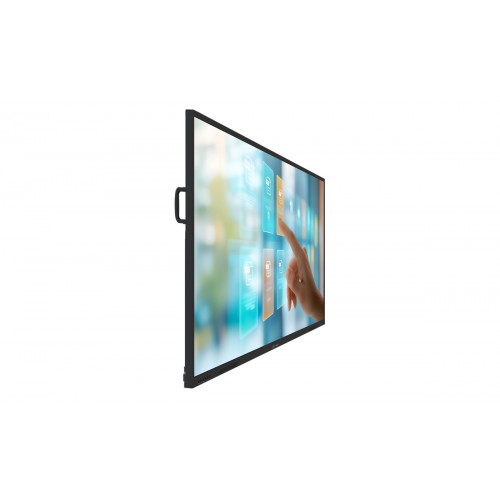

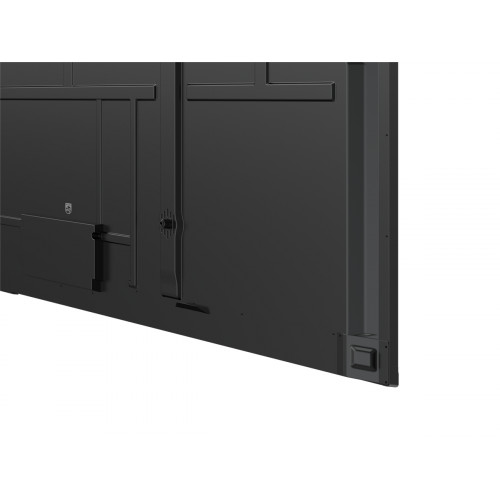

Philips 86BDL4252E/00. Product design: Interactive flat panel. Display diagonal: 2.18 m (86"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating system installed: Android 14. Product colour: Black
| Display | |
|---|---|
| Display diagonal | 2.18 m (86") |
| Display technology | LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 500000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.4935 x 0.4935 mm |
| Display diagonal (metric) | 218.44 cm |
| Panel life | 50000 h |
| Supported graphics resolutions | 800 x 600 (SVGA), 848 x 480, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1600 x 1200, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160 |
| Supported video modes | 480i, 480p, 720p, 1080i, 1080p, 2160p |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| Audio (L/R) out | 1 |
| PC Audio in | Yes |
| Number of speaker outputs | 1 |
| RS-232C | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Bluetooth audio | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 40 W |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 600 mm |
| Bezel width (bottom) | 4.49 cm |
| Bezel width (side) | 1.64 cm |
| Bezel width (top) | 1.73 cm |
| Anti-glare screen | Yes |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 175 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Operating system installed | Android 14 |
| Weight & dimensions | |
| Display weight | 51.2 kg |
| Width | 1957 mm |
| Depth | 97.1 mm |
| Height | 1170.8 mm |
| Width (with stand) | 1957 mm |
| Depth (with stand) | 97.1 mm |
| Height (with stand) | 1170.8 mm |
| Packaging data | |
| Package weight | 70 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Stylus pen | Yes |
| Number of stylus pens | 2 |
| Cables included | AC, USB Type-A to USB Type-B |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Technical details | |
| Compliance certificates | CB, CE, EAC, EMF, ETL, Federal Communications Commission (FCC), RoHS |
| Other features | |
| Manual | Yes |
| Quick start guide | Yes |
| Aspect ratio | 16:9 |
PHILIPS E-LINE 86" UHD IR 40 TOUCH USB-C NFC ANDROID 14 WAVE
- Brand: Philips
- Product Code: 86BDL4252E/00
