| Ports & interfaces |
|---|

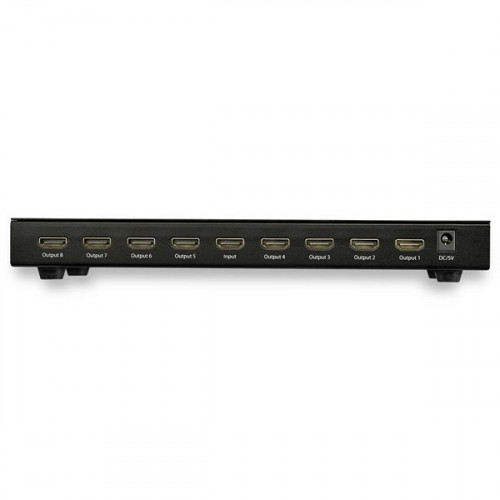

| Video port type | HDMI |
| Video out | 8x HDMI |
| HDMI version | 2.0 |
| Video ports quantity | 8 |
| Features |
|---|
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Power LED | Yes |
| Supported video modes | 720p, 1080p |
| LED indicators | Yes |
| Certification | CE, FCC, REACH |
| Power |
|---|
| AC input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output voltage | 5 V |
| Output current | 3 A |
| Power consumption (typical) | 15 W |
| Weight & dimensions |
|---|
| Width | 110 mm |
| Depth | 258 mm |
| Height | 26 mm |
| Weight | 762 g |
| Packaging data |
|---|
| Package width | 260 mm |
| Package depth | 325 mm |
| Package height | 70 mm |
| Package weight | 1.2 kg |
| Packaging content |
|---|

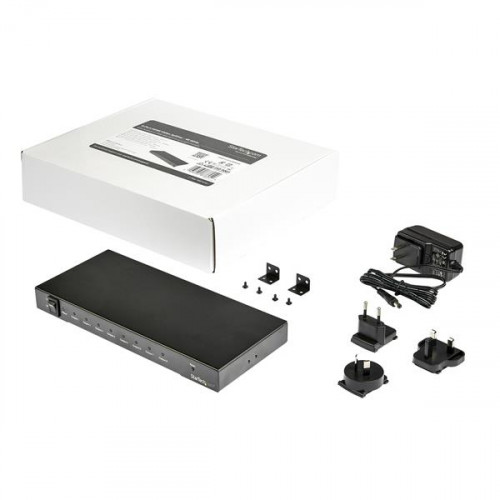

| Included power plug types | AU, EU, NA, UK |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Technical details |
|---|
| Audio support | Yes |
| Supported audio channels | 7.1 |
| Compliance certificates | RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code | 85176990 |
